rails date_select examples

<%= date_select 'episode', 'published_at' %>

This generates date selection drop down that has 5 previous years, current year and the next 5 years.

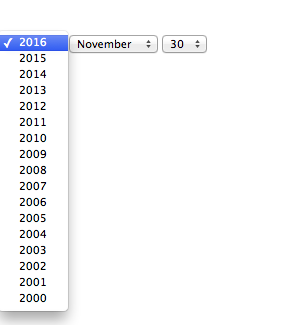

<%= date_select 'episode', 'published_at', start_year: Date.current.year, end_year: 2000 %>

This starts from current year and goes back till year 2000.

<%= date_select 'episode', 'published_at', start_year: 1980 , end_year: Date.current.year - 10 %>

You can provide fixed start year and go back 10 years from current year as shown above.

<%= date_select 'episode', 'published_at', order: [:month, :day, :year], start_year: 1980 , end_year: Date.current.year - 10 %>




You can provide the order of month, day and year in the order option as shown above.

RubyPlus Podcast Episode 19

Dynamic Select Menus in Rails 5

Watch the latest Rails screencast on Dynamic Select Menus in Rails 5

Gilded Rose Kata

I am writing TDD in Ruby book that has a chapter on Gilded Rose Kata. I have watched the presentations by Sandi Metz and Paul on this kata. They take different approaches to solve the problem. Sandi Metz's presentation was more engaging. I thought it was a great idea when she gradually refactored by trapping one type of cheese at a time by short-circuiting the code path for a certain cheese and make those tests fail and gradually making them pass one at a time. I don't think inheritance is the right choice in the final design. The problem is we are not inheriting any behavior from the superclass. Only the state is shared between the superclass and the subclasses so composition would have been the right choice.

I liked Paul's design of wrapping the item class and not using any dynamic class creation like Sandi Metz. Paul had a great examples of making the code express the domain concepts. But fell short in the end because he failed to recognize the data duplication and perhaps missed an opportunity to make it more expressive. Sandi Metz failed to raise the level of abstraction in the unit tests. Surprising thing is when she is describing what the test does, it could have easily been made a domain specific assertion like assert_quality_decrease etc. Hopefully, my book will address these shortcomings and perhaps I will push myself to produce something that I use in a conference talk.

Paul's presentation was a bit dry but he still had some good refactoring patterns and discussion about De Morgan's Law. I never thought what I had learned in high school would be relevant to coding today.

Requirements: https://github.com/emilybache/GildedRose-Refactoring-Kata/blob/master/GildedRoseRequirements.txt
Emily Bache Presentation https://vimeo.com/channels/tga12/53829152
Ruby Code to Use as a Starting Point
https://raw.githubusercontent.com/emilybache/GildedRose-Refactoring-Kata/master/ruby/gilded_rose.rb
If you would like to download the vimeo video, follow this link: http://en.savefrom.net/#url=https%3A%2F%2Fvimeo.com%2Fchannels%2Ftga12%2F53829152

Ruby Plus Podcast Episode 18

Semantic UI in Rails

The article on Upwork blog compares Semantic UI with Twitter Bootstrap and concludes that Semantic UI requires knowledge of javascript.

http://semantic-ui.com/
https://rubyinrails.com/2014/03/08/how-to-integrate-semantic-ui-rails-with-rails-application/
https://github.com/doabit/semantic-ui-sass

NoMethodError undefined method `[]' for "image":Sass::Script::Value::String

I ran into this issue when upgrading a Rails 3.2 project to Rails 4.2. This is due to sprockets-rails version incompatibility. Replace asset-url with two arguments with image-url('logo.png').

https://github.com/rails/sprockets-rails/issues/279

Your bundle requires gems that depend on each other, creating an infinite loop. Please remove gem 'meta_search' and try again.

Add: gem 'activeadmin', github: 'activeadmin' to Gemfile and run bundle install.

How to find which gem is used in a Rails project

Run: bundle show gem-name
For example: bundle show paper_trail

Set title dynamically in Rails 5

In article show page:

<%= content_for(:title, @article.title) %>

 In layout file:

<title> <%= yield(:title) %>

alias_method in Ruby

alias_method(new_name, old_name)

Makes new_name a new copy of the old_name method. This is used to retain access to methods that are overridden.

module Tester
  alias_method :original_exit, :exit

  def exit(code=0)
    puts "Exiting with code #{code}"
    original_exit(code)
  end
end

include Tester
exit(99)

This prints: Exiting with code 99

This can be rewritten in a simpler way with less code like this:

module Tester
  def exit(code=0)
    puts "Exiting with code #{code}"
    super
  end
end

include Tester
exit(99)

This also prints the same output. What is the use of alias_method? Here is a test case:

module Tester
  def exit(code=0)
    puts "Exiting with code #{code}"
    super
  end
end

class Dummy
  include Tester
  def exit
    puts "Inside original exit"
  end
end

Dummy.new.exit(99)


This fails with error message: ArgumentError: wrong number of arguments (given 1, expected 0). We can fix this by doing this:

module Tester
  alias_method :original_exit, :exit

  def self.included(base)
    base.class_eval do
      def exit(code=0)
        puts "Exiting with code #{code}"
        original_exit
      end
    end
  end
end
class Dummy
  include Tester
end
Dummy.new.exit(99)

 This also prints: Exiting with code 99. This explains when to use alias_method, use it only when it is needed.

Game of Life Links

https://github.com/ofcan/game-of-life-ruby
https://github.com/rayning0/game-of-life-ruby

undefined method `to_time_in_current_zone' for DateTime

I got this error while upgrading a Rails 3.2 project to Rails 4.2. This method has been removed from Rails 4.1. The resolution is to use

in_time_zone instead of to_time_in_current_zone
